Anaesthesia Workstation
Anaesthesia Workstation Specification
- Dimension (L*W*H)
- 1350 x 850 x 600 mm
- Height
- 1350 mm
- Treatment Type
- General Anaesthesia
- Frequency
- 50 Hz
- Suitable For
- Adults and Pediatrics
- Display Type
- Digital
- Humidity Range
- 10-95% RH
- Phase
- Single Phase
- Shape
- Rectangular
- Storage Capacity
- Two Drawer Storage
- Power
- 220 W
- Material
- Powder-coated Metal, ABS Plastic
- Use
- Delivery of controlled anaesthetic gases
- Automation Grade
- Semi-Automatic
- Properties
- Modular Design, Easy Maintenance
- Weight
- 105 kg
- Temperature Range
- 10C to 40C
- Accuracy
- High Precision Gas Flow
- Application
- Operation Theatre, ICU
- Color Code
- White/Blue
- Product Type
- Anaesthesia Workstation
- Function
- Anaesthetic Gas Delivery and Monitoring
- Power Source
- Electric
- Voltage
- 220-240 V
- Display
- 7 Inch LCD
- Accessory Mounts
- IV Pole, Monitor Tray
- Vaporizer Compatibility
- Halothane, Isoflurane, Sevoflurane
- Pressure Relief Valve
- Present
- Alarm System
- Yes, Audio-Visual
- Flowmeter Range
- O2: 0.1-10 L/min, N2O: 0.1-10 L/min, Air: 0.1-10 L/min
- Scavenging System
- Integrated
- Castor Wheels
- Lockable, Anti-Static
- Oxygen Failure Protection Device
- Yes
- Number of Gas Rotameters
- 3 (O2, N2O, Air)
- Ventilator Modes
- Volume Control, Pressure Control
- Breathing System
- Closed and Semi-Closed
- Backup Battery
- Up to 2 Hours
- Noise Level
- <55 dB
Anaesthesia Workstation Trade Information
- Minimum Order Quantity
- 1 Piece
- Delivery Time
- 45 Days
About Anaesthesia Workstation
Anaesthesia Workstation

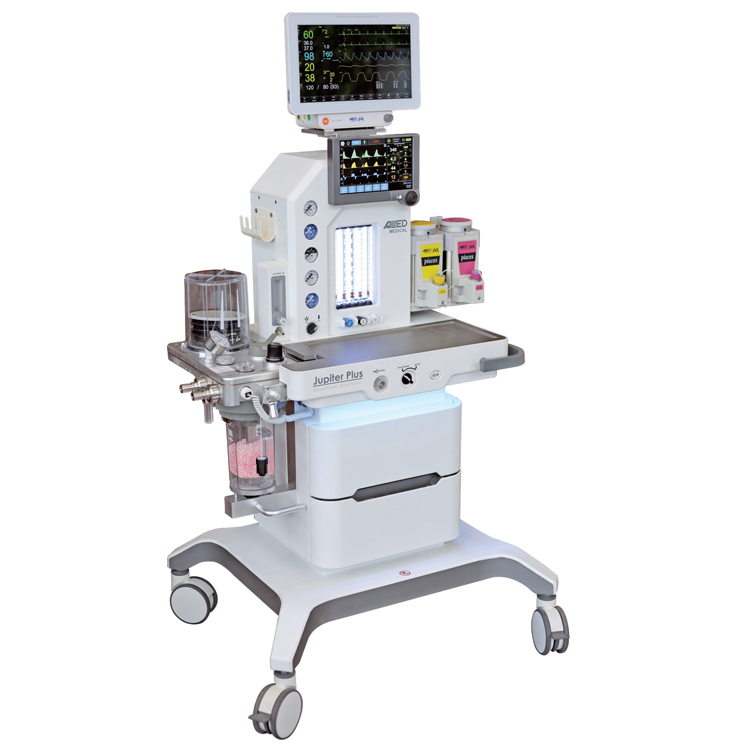

Model: Jupiter Plus
| Gas System: | Three (Oxygen, Nitrious & Air) |
| Display: | 10.1-inch high-resolution Touch Screen with Rotary Knob |
| Ventilation Modes: | VCV, PCV, V-SIMV+PSV, P-SIMV+PSV, PSV (optional), AC-V, AC-P and Manual (Suitable for both Adult & Pediatric patients with Adult/Pediatric mode selection) |
| Electronic gas Mixing: | No |
| Neonatal Ventilation: | No |
| Circle Absorber: | Yes |
| Hypoxia Guard: | Yes |
| Electronic Peep: | Settable, 3-30 cmH2O |
| Tidal Vol: | 20ml-1500ml |
| Vaporizer Option: | ISO/SEVO |
| Vaporizer Connectivity: | Any 2 Vaporizer Connect at a time |
| I:E Ratio: | 4:1 - 1:9 |
| O2 failure Alarm: | Audio Visual alarm for O2 failure |
| Internal Battery Backup: | 2 hrs |
| Patient Monitor: | Optional |
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
More Products in Anaesthesia Workstation Category
Jupiter Plus Anaesthesia Workstation
Price 709000 INR / Unit
Minimum Order Quantity : 1 Unit
Suitable For : medical use
Use : in hospitals .
Product Type : Anaesthesia Workstation
Material : metal and pvc
Neptune Plus Anaesthesia Workstation
Price 986000 INR / Piece
Minimum Order Quantity : 1 Unit
Suitable For : medical
Use : in hospital;s
Product Type : Neptune Plus Anaesthesia Workstation
Material : metal and pvc
Neptune Prime Anaesthesia Workstation
Price 3057000 INR / Piece
Minimum Order Quantity : 1 Unit
Suitable For : medical use
Use : in hospitals .
Product Type : Neptune Prime Anaesthesia Workstation
Material : metal and pvc
Jupiter Anaesthesia Workstation
Price 562800 INR / Unit
Minimum Order Quantity : 1 Unit
Suitable For : medical purposes .
Use : in hospitals .
Product Type : Jupiter Anaesthesia Workstation
Material : Metal &PVC
